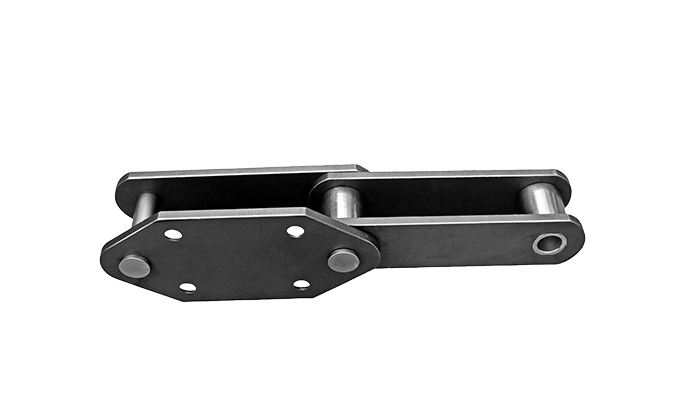

High Strength Bucket Elevator Plate Chain

Structural Features of Bucket Elevator Plate Chain

• Chain Plate Design：

The bucket elevator plate chain is usually composed of multiple chain plates connected together. These chain plates are generally made of high-quality metal materials, such as high-strength alloy steel. Their shapes are mostly rectangular or slightly curved, which can better connect and cooperate with the hopper and other components, and also withstand the weight of the materials and the tension during the operation process.

• Connection：

The chain plates are connected with each other by pins, sleeves and other connectors. The precision and strength of these connectors are crucial to the reliability of the whole plate chain. A reasonable connection design ensures that the chain operates flexibly and smoothly and reduces the jamming and wear phenomena.

Performance Characteristics

• High-strength Bearing Capacity：

It is mainly used for lifting various materials. Hence, it needs to possess a strong bearing capacity to withstand the weight of the hopper filled with materials as well as its own weight, ensuring no breakage or other faults occur during vertical or inclined lifting and guaranteeing the continuity of material conveying.

• Good Abrasion Resistance：

During the long-term operation, the plate chain frequently rubs against the sprocket, the hopper and other parts. Therefore, its surface usually undergoes special treatments like heat treatment to improve abrasion resistance and prolong the service life.

• Corrosion Resistance：

When conveying corrosive materials (such as chemical raw materials, etc.) or working in humid, dusty and other harsh environments, the material of the plate chain is selected to have a certain degree of corrosion resistance or undergoes corresponding anti-corrosion treatments, such as zinc plating, anti-corrosive paint coating, etc., to ensure the stability of its performance.

Application Fields

• Grain processing industry

• Cement industry

• Mining industry

• Chemical industry

Material: Alloy Steel (40Cr, etc.)

NE Series Bucket Elevator Plate Chain Technical Parameters

Customization standards: According to the incoming drawings.

Product Advantage:

• Utilization of high-quality raw materials.

• High strength and excellent toughness.

• High capacity for absorbing impact loads.

• High product strength.

• 100% factory testing.

• Employment of advanced production equipment.

• Adoption of advanced heat treatment process and surface anti-rust treatment.

We offer replacement products of bucket elevator plate chain for cement plants and mining industries. If you need further information or would like to discuss your specific requirements in greater detail, please feel free to contact us.
